Autonomous Mobile Robots (AMR)
Enable 24/7 operation for AMRs in logistics, manufacturing, and healthcare environments.
Reliable. Efficient. Contactless. Powering the next generation of intelligent machines.

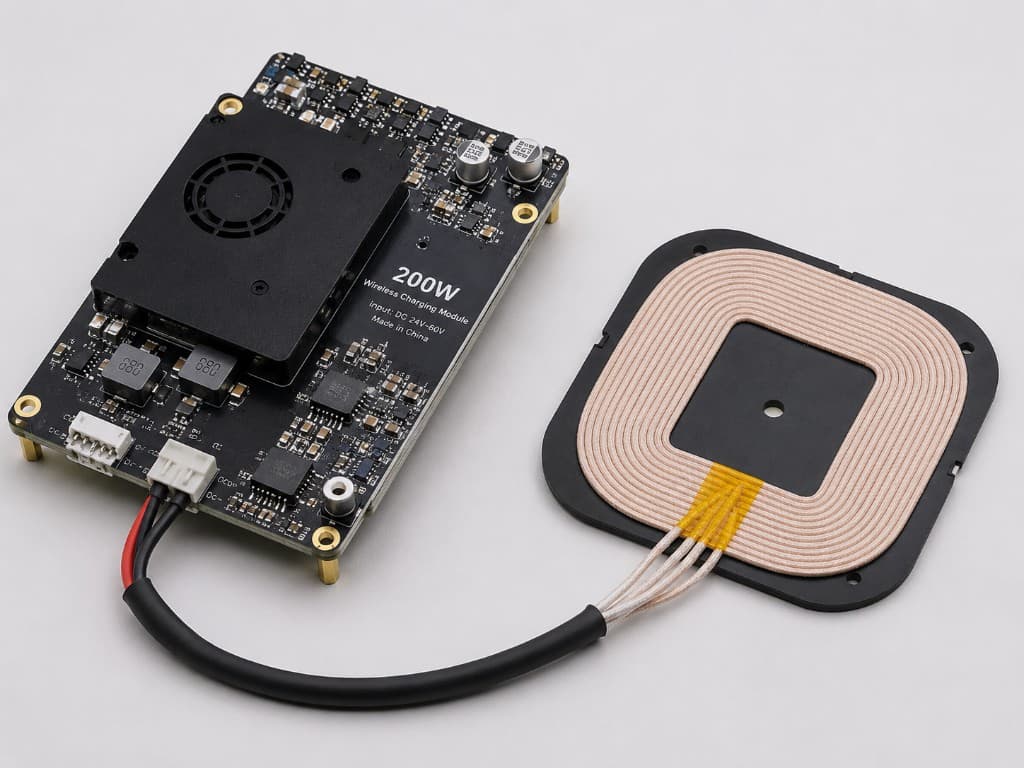

200W Output Power
High Efficiency (Up to 93%)
Safe & Reliable (Multi-Protection)
Industrial Grade (IP67 Ready)
| Output Power | 200W Max |
|---|---|
| Input Voltage | DC 24V – 60V |
| Efficiency | Up to 93% |
| Operating Frequency | 85–205 kHz |
| Transfer Distance | 10–40 mm |
| Alignment Tolerance | ±15 mm |
| Protection | OCP / OVP / OTP / FOD |
| Module Size | 160 × 160 × 11 mm |
| Operating Temperature | -20°C to +60°C |
| Ingress Rating | IP67 Ready |
Module Outline
Top View
Side View
Optimized resonant transfer delivers up to 93% efficiency with low thermal loss.
Multi-layer protection including OCP, OVP, OTP, and foreign object detection.
Stable charging performance even with lateral and angular misalignment.
Industrial thermal design keeps modules cool under continuous duty cycles.
Rugged, compact form factor ready for OEM integration and sealed platforms.
Perfectly suited for a wide range of intelligent systems.

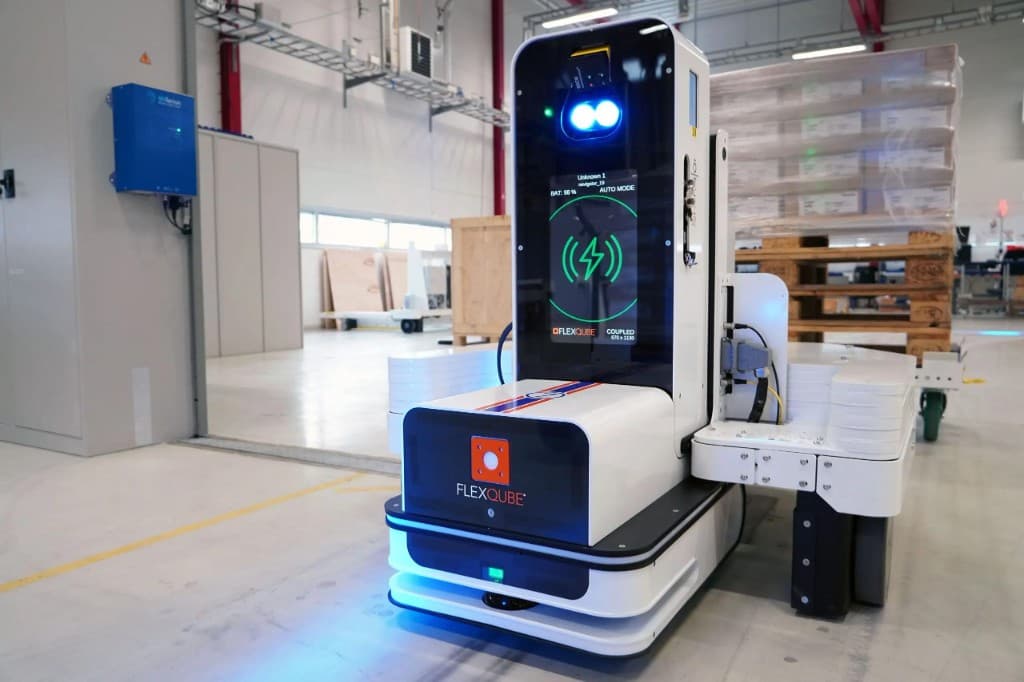

Enable 24/7 operation for AMRs in logistics, manufacturing, and healthcare environments.

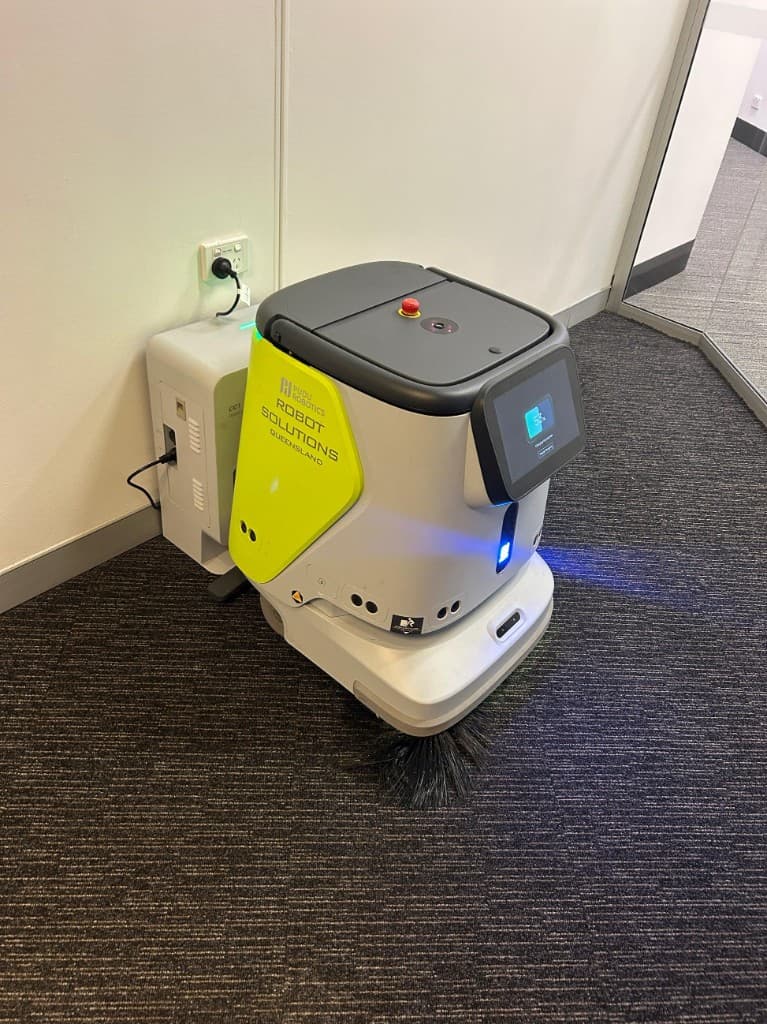

Automatic charging for cleaning robots in malls, airports, hospitals, and office buildings.

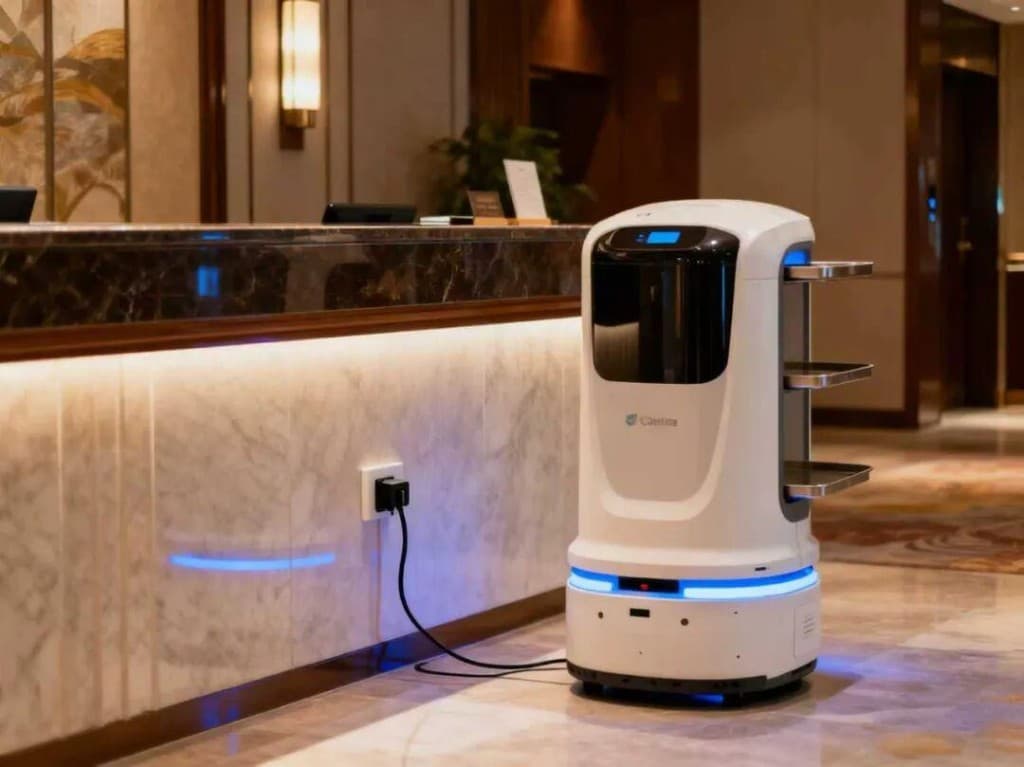

Keep delivery and service robots always ready with seamless wireless charging.

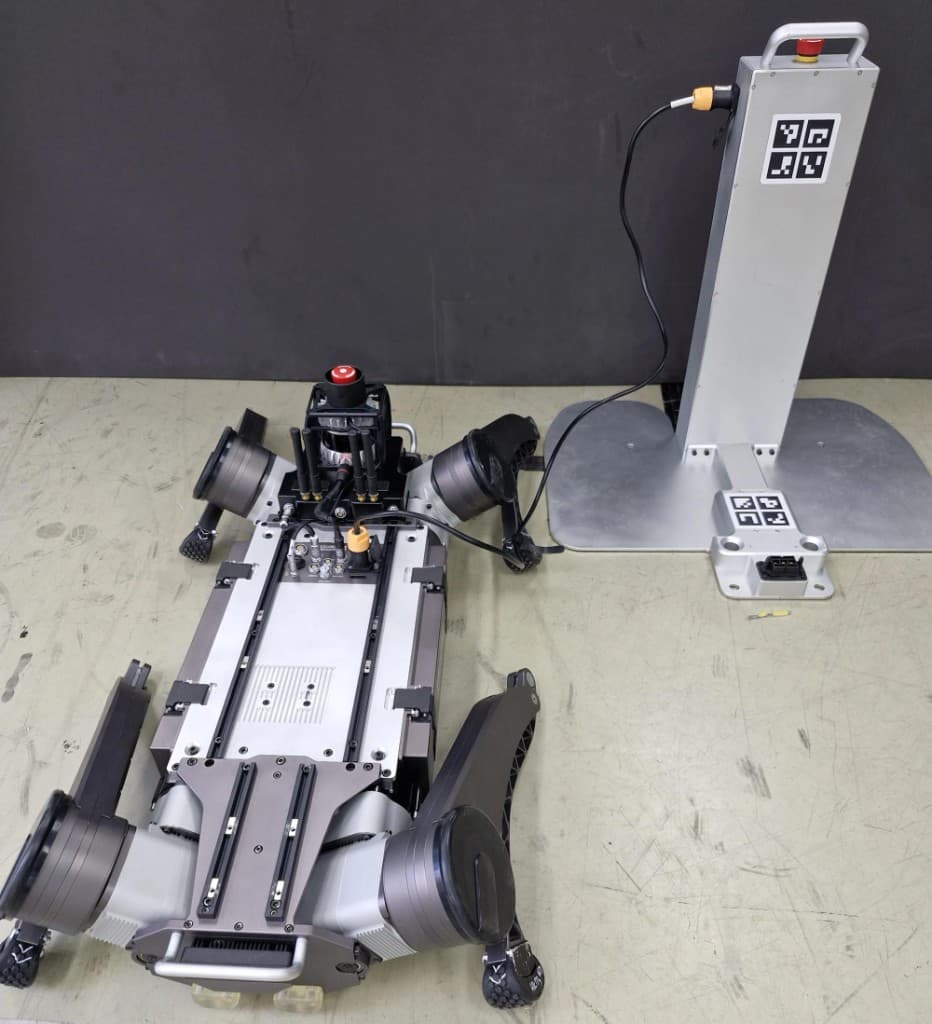

Reliable power for inspection and security robots in industrial plants, power stations, and more.

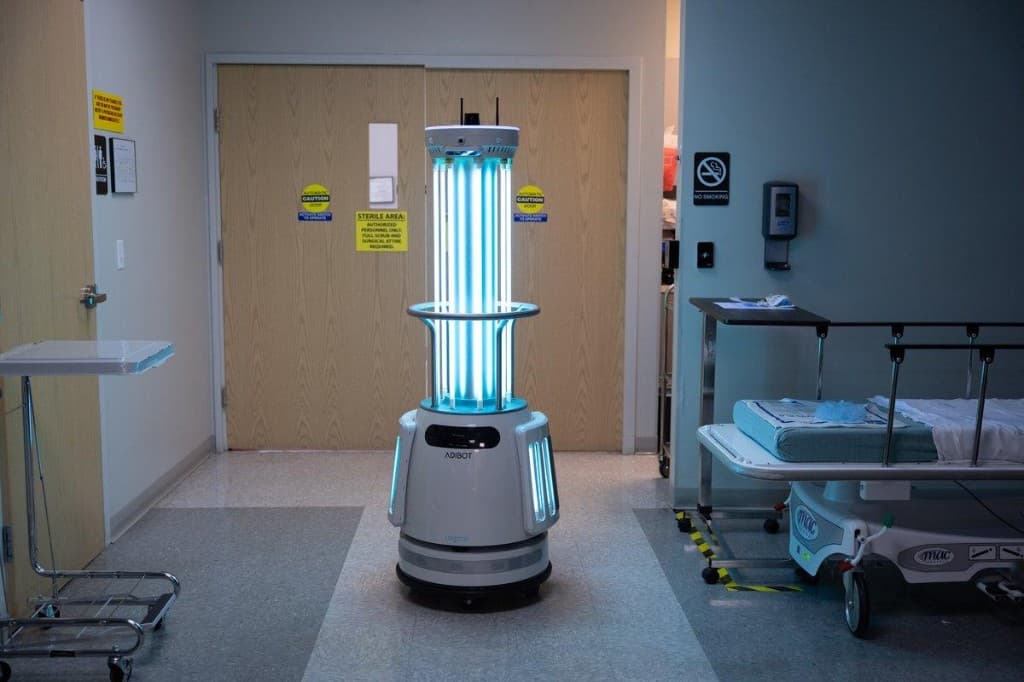

Safe and hygienic charging for medical carts, mobile workstations, and disinfection robots.
Let's build the future of wireless power together.
